Ammo Reports Team
| Feature | Detail |
|---|---|
| Primary Use | Deer hunting, lead-free big game |
| Bullet Type | Solid Copper Extreme Point with Large-Diameter Polymer Tip |
| Bullet Weight | 150 grain |
| Case Material | Brass |
| Primer Type | Boxer (centerfire) |
| Packaging | 20 rounds per box |
| Typical Price | $50.99/box — $2.55/round |
| Closest Competitors | Federal Trophy Copper 30-06 Springfield 150 gr Trophy Copper, Barnes VOR-TX 30-06 Springfield 150 gr TTSX BT, Hornady Outfitter 30-06 Springfield 150 gr GMX |
Official Specs
| Spec | Value | Source |
|---|---|---|
| Muzzle Velocity (fps) | — | Not published |
| Muzzle Energy (ft-lbs) | — | Not published |
| Bullet Weight | 150 gr | Manufacturer |
| Bullet Type | Solid Copper Extreme Point (Lead-Free, Polymer Tip) | Manufacturer |
| BC G1 | — | Not published |
| BC G7 | — | Not published |
| Manufacturer SKU | — | Not published |
| UPC | — | Not published |
| Reloadable | Yes | Manufacturer (brass case, Boxer primer) |
Note: Winchester does not publish muzzle velocity, muzzle energy, or ballistic coefficient data for this specific load in publicly available product documentation at the time of writing. The ballistics table below uses calculated estimates based on comparable 150 gr solid copper 30-06 loads. All estimated values are clearly labeled. Community submissions of measured chronograph data are welcome to supplement this page.
Ballistics Table
Calculated estimate. Real-world results vary by barrel length, temperature,altitude, and lot. Community submissions will provide measured muzzlevelocity for comparison.
Estimated based on 150 gr solid copper 30-06 performance typical of this construction class. Sight height: 1.5″ above bore. Zero: 100 yards.
| Yards | Velocity (fps) | Energy (ft-lbs) | Trajectory (in) |
|---|---|---|---|
| 0 | ~2,920 | ~2,839 | -1.5 |
| 100 | ~2,700 | ~2,430 | 0.0 ← zero |
| 200 | ~2,490 | ~2,065 | +3.6 |
| 300 | ~2,290 | ~1,747 | -4.2 |
| 400 | ~2,100 | ~1,469 | -20.1 |
| 500 | ~1,920 | ~1,229 | -50.8 |
Key takeaway: At a 100-yard zero, this load stays within roughly ±4 inches of line of sight out to approximately 300 yards, making it practical for most whitetail deer hunting scenarios without holdover adjustment. The solid copper construction retains more mass downrange than comparable lead-core bullets, which helps sustain terminal energy at extended distances. Beyond 400 yards, drop becomes significant and holds must be precise. For most hunters using this load, 300 yards represents a reasonable ethical maximum range under field conditions.
The Solid Copper Extreme Point Bullet
The Winchester Copper Impact line is built around a monolithic solid copper bullet fitted with a large-diameter polymer tip — a design philosophy that distinguishes it from traditional lead-core hunting ammunition. The polymer tip serves two roles: it protects the hollow nose cavity during feeding and chambering, and it initiates hydraulic expansion on impact by driving rearward into the bullet’s nose cavity.
Because the bullet is 100% copper with no lead core, it behaves differently than conventional cup-and-core projectiles. Solid copper bullets typically expand to a larger frontal diameter relative to their caliber, and they retain nearly all of their original weight through the target — often 95–99% compared to 60–80% for bonded lead-core designs. This high weight retention translates to deep, straight wound channels, which is particularly valuable for large-bodied deer, where penetration through heavy shoulder bone may be required.
The lead-free construction also makes this load legal for use in jurisdictions that mandate non-toxic or lead-free hunting ammunition — an increasingly important consideration as more states and counties adopt such regulations for specific wildlife management units or on public lands. California’s statewide lead ammunition ban for hunting is the most prominent example, but similar rules are expanding in other regions.
One characteristic of solid copper bullets worth understanding is that they typically run at higher chamber pressures than equivalent lead-core loads at the same velocity, and they may require a slight reduction in powder charge from a reloader’s perspective — though this is irrelevant for factory ammunition buyers. What does matter is that barrel fouling from solid copper can differ from lead fouling; copper-specific bore solvents are recommended for maintenance with extended use of this load type.
Best Uses
Good fit:
- Whitetail deer hunting at ranges from close timber shots out to approximately 300 yards
- Hunting in states or regions with lead-free ammunition mandates (e.g., California, specific public land units)
- Hunters who prefer a monolithic bullet for maximum weight retention and deep penetration on large-bodied game
- Situations requiring reliable expansion across a wide range of impact velocities, such as shots at varying distances
- Hunters concerned about lead fragmentation in harvested meat intended for consumption
Not the right tool for:
- Varmint or predator hunting where rapid fragmentation and minimal pelt damage are priorities — solid copper bullets are designed for deep penetration, not explosive expansion
- Budget-conscious shooters or those who practice extensively at the range; at approximately $2.55/round, this is a premium-priced hunting load
- Older rifles with very slow twist rates that may not stabilize longer-for-weight solid copper projectiles as effectively as shorter lead-core equivalents
- Hunters pursuing thin-skinned, lightly built game at close range where over-penetration could be a concern
Reliability Notes
No structured submissions yet.
Based on manufacturer claims and open-source product information: Winchester states that the Copper Impact line is engineered for consistent, controlled expansion across a broad velocity range, which implies reliable terminal performance even at the reduced velocities typical of longer shots. The large-diameter polymer tip is described as a key driver of the expansion mechanism, functioning similarly to the tip design used in Winchester’s lead-core Extreme Point line but adapted for the higher hardness of a copper shank. Open-source field reports from hunting forums suggest that exit wounds are consistently present with this bullet type on whitetail-sized game, which many hunters interpret as evidence of adequate penetration and energy transfer. No structured chronograph data or independent laboratory terminal performance data was available at the time of writing. All notes here derive from manufacturer claims or open community sources, not structured testing data.
Competitors
| Load | Weight | Bullet | BC G1 | Adv. Velocity | Price/box | Notes |
|---|---|---|---|---|---|---|
| Federal Trophy Copper 30-06 Springfield | 150 gr | Trophy Copper (Solid Copper, Polymer Tip) | ~0.430 | ~2,930 fps | ~$52–$58 | Lead-free; direct comparable; widely available |
| Barnes VOR-TX 30-06 Springfield | 150 gr | TTSX BT (Triple-Shock X, Solid Copper) | ~0.435 | ~2,900 fps | ~$55–$62 | Lead-free; premium; strong reputation for accuracy |
| Hornady Outfitter 30-06 Springfield | 150 gr | GMX (Gilding Metal Expanding) | ~0.390 | ~2,910 fps | ~$48–$55 | Lead-free; nickel-plated case for adverse conditions |
| Winchester Power-Max Bonded 30-06 Springfield | 150 gr | Protected HP (Bonded Lead Core) | ~0.338 | ~2,920 fps | ~$28–$35 | Budget alternative; lead-core; not lead-free |
| Nosler Trophy Grade 30-06 Springfield | 150 gr | AccuBond (Bonded Lead Core) | ~0.435 | ~2,900 fps | ~$45–$55 | Premium; lead-core; excellent long-range BC |
| Remington Core-Lokt 30-06 Springfield | 150 gr | Core-Lokt PSP (Lead Core) | ~0.314 | ~2,910 fps | ~$22–$28 | Budget alternative; lead-core; not lead-free; proven design |
Price Reality
- Typical retail price: approximately $48–$55 per 20-round box; case pricing (typically 10 boxes/200 rounds) is approximately $480–$540 when available
- Per-round cost: approximately $2.40–$2.75, with the reference price of $50.99 yielding $2.55/round
- Compared to Federal Trophy Copper 30-06 150 gr: comparable pricing, typically within $2–$5 per box; both are premium lead-free loads at similar price points
- Compared to Barnes VOR-TX 30-06 150 gr: Barnes typically runs $3–$10 more per box, making Winchester Copper Impact a moderate savings for buyers seeking solid copper performance
- Compared to Remington Core-Lokt 30-06 150 gr: Core-Lokt runs approximately $22–$28/box — roughly half the price — but uses a conventional lead-core construction without lead-free compliance
- Fair price benchmark: Paying more than $58/box for this load at standard retail would be above market rate. Pricing above $60/box should prompt comparison shopping. Lead-free solid copper ammunition commands a legitimate premium over conventional lead-core loads due to raw material costs, and $48–$55 represents the normal market range for this construction class.
Prices change. Check the Where to Buy block for current listings.
Where to Buy

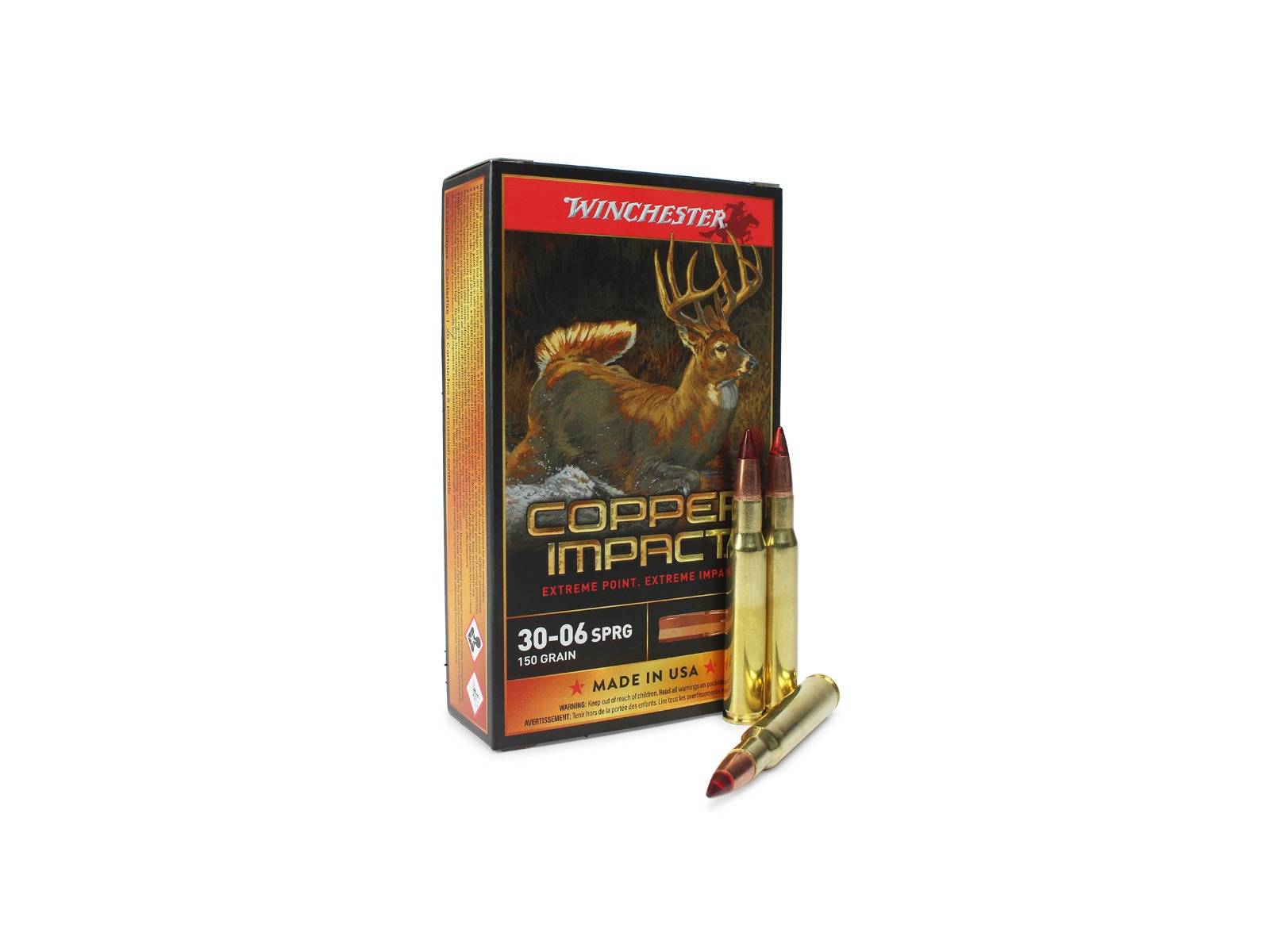

Winchester Copper Impact 30-06 Springfield 150 Grain Lead-Free Extreme Point (Box)
Affiliate links. These do not influence ratings, data, or any editorial content on this page.
FAQ
Does the Winchester Copper Impact 150 gr 30-06 expand reliably at longer ranges where velocity is reduced?
The large-diameter polymer tip on the Extreme Point bullet is designed to initiate expansion at impact velocities lower than those required by many conventional hollow-point designs. Solid copper bullets generally have a wider expansion velocity window than lead-core projectiles because the copper jacket and hollow nose cavity work together without the complication of a separate core separating. Winchester markets this load specifically for deer hunting at hunting-realistic ranges, implying confidence in terminal performance out to at least 300 yards. Without published independent terminal ballistics data, the precise minimum expansion velocity is not confirmed, but comparable solid copper designs from other manufacturers typically expand reliably down to approximately 1,800–1,900 fps.
How does the Winchester Copper Impact compare directly to the Barnes VOR-TX 30-06 150 gr TTSX?
Both loads use monolithic solid copper bullets with polymer tips and are fully lead-free, making them functionally similar in construction philosophy. The Barnes TTSX has a longer track record with published independent terminal performance data and is often cited in hunting literature as a benchmark for solid copper performance. The Winchester Copper Impact is generally priced slightly lower than VOR-TX, making it an accessible entry point for hunters seeking lead-free performance without the Barnes price premium. Ballistic coefficients for both designs are comparable at this weight, and either load is a reasonable choice for deer-sized game; the decision often comes down to price availability and individual rifle accuracy preference.
Is this ammunition legal for hunting in California and other lead-free mandate states?
Yes. Because the Winchester Copper Impact uses a 100% solid copper bullet with no lead core, it meets the requirements of California’s Ridley’s Law (AB 711) and similar lead-free hunting regulations in other jurisdictions. Hunters should always verify current regulations for their specific hunting unit and season, as rules can change and some areas may have additional restrictions beyond simple lead-free requirements. The lead-free designation on the box is the key indicator for regulatory compliance purposes. Always confirm compliance with your state wildlife agency before the season.
Will this load shoot accurately in my 30-06 without adjustments?
Solid copper bullets are typically longer than lead-core bullets of the same weight due to copper’s lower density compared to lead. This can affect seating depth and magazine fit, though factory ammunition is loaded to SAAMI-standard overall length and should feed normally in any standard 30-06 chamber. Some rifles show a preference for specific bullet constructions, and it is not unusual for a rifle that shoots one brand of lead-core ammunition very accurately to require a slight sight adjustment when switching to a solid copper load — this is a normal function of different bullet weights, BCs, and velocities, not a defect. Shooting a three-shot group at 100 yards before hunting season to confirm zero is always recommended when switching ammunition types.
What game animals is the Winchester Copper Impact 30-06 150 gr appropriate for beyond whitetail deer?The 150 gr solid copper construction with high weight retention makes this load suitable for most North American deer-class and medium-sized big game, including mule deer, pronghorn, black bear, and caribou. For larger, heavier game such as elk or moose, many hunters prefer a heavier bullet — 165 gr or 180 gr — in 30-06 to ensure adequate penetration through the larger muscle mass and bone structure of these animals, though a well-placed 150 gr solid copper bullet at close to moderate range is not an unreasonable choice. For dangerous game or very large animals, a heavier, purpose-designed load is more appropriate. The 30-06 Springfield cartridge itself is widely considered adequate for most North American big game when loaded with appropriate bullets, and the Copper Impact’s construction suits it well for the middle tier of that spectrum.
