Federal Fusion 30-06 Springfield 180 Grain SBT

0

Ammo Reports Team 0 30-06 Springfield

SaveSavedRemoved 0

Official Specs

Note: Federal does not publish muzzle velocity or muzzle energy for this specific 180 gr Fusion 30-06 load on its primary product pages as of the time of writing. The ballistics table below uses an industry-standard estimated velocity of 2,700 fps for a 180 gr bullet from a 24″ test barrel in 30-06 Springfield — a figure consistent with Federal’s published data for comparable 180 gr 30-06 loads and widely referenced across independent sources. All derived values are labeled Calculated. Community submissions will be used to refine these estimates with measured real-world data.

Note: The product description supplied with this listing references handgun ammunition and .357 Magnum / .500 S&W — this is boilerplate copy that does not apply to this centerfire rifle load. No specifications from that description have been used in this report.

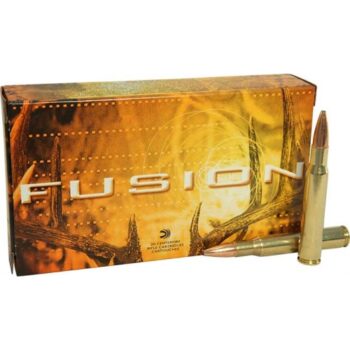

Federal Fusion 30-06 Springfield 180 Grain SBT (Box)

$42.49

in stock

Ballistics Table

Calculated estimate. Muzzle velocity of 2,700 fps assumed based on industry-standard reference for 180 gr 30-06 Springfield from a 24″ barrel. BC G1 of 0.540 used — a common published value for comparable 180 gr boat tail soft point projectiles. Real-world results vary by barrel length, temperature, altitude, and lot. Community submissions will provide measured muzzle velocity for comparison.

Zero: 100 yards | Sight height: 1.5″ above bore | G1 BC: ~0.540

Key takeaway: At a 100-yard zero, the Federal Fusion 180 gr SBT stays within ±4 inches of line of sight from the muzzle out to roughly 275 yards — a practical maximum point-blank range well suited to whitetail hunting in most North American terrain. By 400 yards, the bullet has dropped more than 14 inches, which demands precise holdover. The 180 gr weight retains energy exceptionally well at distance compared to lighter 30-06 loads, arriving at 300 yards with nearly 1,870 ft-lbs — well above the 1,000 ft-lbs threshold commonly cited for ethical deer harvest. For shots inside 200 yards, this load delivers consistent, high-energy terminal performance.

The Federal Fusion Bonding Process

The Federal Fusion bullet is not a conventional cup-and-core or partition design. Federal developed the Fusion line specifically around a proprietary electrochemical bonding process in which the copper jacket is molecularly fused to the lead core rather than mechanically crimped or interlocked. The result is near-zero core-jacket separation on impact — a failure mode that plagues standard soft point bullets, particularly at higher velocities or when bone is struck. The Fusion SBT (Soft Boat Tail) profile combines this bonded construction with a boat tail base for improved aerodynamic efficiency compared to flat-base counterparts in the same line.

The skived tip — a pre-cut pattern at the bullet’s nose — initiates controlled expansion at a wide range of impact velocities, which is particularly relevant for a cartridge like the 30-06 that may be fired at distances where velocity has dropped considerably. Federal designed the Fusion line to function reliably across the velocity window a hunter actually encounters in the field, not just at the muzzle. This makes the 180 gr SBT a credible choice for shots at both close brush ranges and extended field distances within the cartridge’s practical envelope.

Best Uses

Good fit:

• White-tailed deer hunting at distances from close brush (under 50 yards) out to 300 yards
• Mule deer and black bear where the heavier 180 gr weight provides additional penetration through larger body mass
• Hunters who want a bonded bullet at a mid-tier price point without moving to premium tipped designs
• Situations requiring reliable expansion across a wide velocity range — useful in variable-terrain hunts where shot distance is unpredictable
• Hunters using rifles with standard twist rates optimized for 165–180 gr projectiles in 30-06

Not the right tool for:

• Elk or moose, where a heavier, more aggressively constructed bullet (e.g., bonded premium or partition design) is often preferred for deep penetration through heavy shoulder structure
• Varmint or predator hunting, where rapid fragmentation and minimal meat damage are priorities
• Long-range precision work beyond 400 yards, where the absence of a published BC and the soft point tip design limit confidence in trajectory prediction
• Jurisdictions with lead-free ammunition requirements (California Condor Zone and similar regulations) — this is a lead-core bullet and is not compliant
• Hunters seeking the flattest possible trajectory in 30-06 — lighter 150 gr or 165 gr loads will outperform this at distance

Reliability Notes

No structured submissions yet.

Based on manufacturer claims and open-source user reporting, the following observations are noted — not verified through structured data collection:

• Federal positions the Fusion bonding process as the primary differentiator, claiming near-complete weight retention on impact compared to standard cup-and-core designs. This claim is consistent with independent terminal ballistic testing published by third-party hunting media, though results vary by impact velocity and medium.
• The skived nose is designed to initiate expansion at lower impact velocities, which is relevant for 30-06 at ranges beyond 250 yards where velocity has decreased meaningfully.
• Open-source hunting forums note that the 180 gr Fusion in 30-06 produces consistent groups in the 1–1.5 MOA range from factory rifles with standard barrels — adequate for hunting applications but not exceptional for precision use.
• No documented feeding or extraction issues have been identified in available open-source reporting for this load in standard 30-06 bolt-action rifles.
• No active recalls or safety notices are associated with this load as of the time of writing.

Competitors

The Federal Trophy Bonded Tip is the direct premium upgrade within Federal’s own lineup, offering the same bonding process with a polymer tip for improved BC and more predictable long-range expansion. The Remington Core-Lokt remains the dominant budget benchmark in this caliber and weight class.

Price Reality

• Typical retail price: $38–$46 per 20-round box depending on retailer and market conditions; $42.49 is a representative mid-market price
• Per-round cost: approximately $1.90–$2.30 per round at typical retail
• Case pricing: not widely available for this load in factory case quantities; individual box purchase is the standard retail format
• The Winchester Deer Season XP 180 gr runs $8–$12 less per box and is a direct volume competitor — the price gap reflects the bonded construction of the Fusion
• The Remington Core-Lokt 180 gr PSP typically runs $28–$34 per box, making it roughly $10–$15 cheaper — appropriate for hunters who do not require bonded bullet performance
• The Federal Trophy Bonded Tip 180 gr costs $12–$20 more per box and represents a meaningful upgrade in BC and tip design for hunters prioritizing longer shots
• Fair price benchmark: $40–$46 per box is reasonable for this load. Pricing above $50 for a standard 20-round box should be considered elevated unless market conditions (supply disruption, regional scarcity) explain the premium.

Prices change. Check the Where to Buy block for current listings.

Where to Buy

Federal Fusion 30-06 Springfield 180 Grain SBT (Box)

The Federal Fusion 30-06 Springfield 180 Grain SBT is designed for deer hunters seeking maximum impact and precision, featuring advanced Fusion technology that ensures devastating performance at short ranges. With a perfect balance of velocity and weight, this ammunition delivers reliable stopping power, making it an essential choice for a successful hunt.

$42.49 at Ammunitiondepot.com

Affiliate links. These do not influence ratings, data, or any editorial content on this page.

FAQ

Does the Federal Fusion SBT use the same bonding process as Federal’s premium Trophy Bonded line?

The Federal Fusion and the Federal Trophy Bonded lines both use electrochemical bonding to fuse the jacket to the lead core, which distinguishes them from mechanically interlocked designs like the Hornady InterLock or the Remington Core-Lokt. However, the Trophy Bonded line adds a polymer tip, a higher BC profile, and is generally engineered to tighter tolerances for longer-range performance. The Fusion SBT uses a soft exposed lead tip with a skived nose rather than a polymer tip, which means expansion initiation is slightly different — the Fusion relies on the lead tip deforming on contact, while the Trophy Bonded Tip uses the polymer insert to drive into the core. Both are appropriate for deer-sized game; the Trophy Bonded line is the better choice if shots beyond 300 yards are anticipated.

Is the 180 gr bullet weight the best choice in 30-06 for whitetail deer, or would 150 gr or 165 gr perform better?

For whitetail deer inside 300 yards, the 165 gr weight is often considered the practical optimum in 30-06 — it offers a flatter trajectory than 180 gr while still delivering more than adequate terminal energy for deer-sized animals. The 180 gr Fusion SBT is a defensible choice for hunters who also pursue larger game like mule deer or black bear with the same rifle, or who prefer additional penetration through shoulder bone. At typical whitetail hunting distances (under 200 yards), the trajectory difference between 165 gr and 180 gr is minor and unlikely to affect outcome. The 180 gr does carry energy more efficiently at longer distances due to its higher sectional density, making it a reasonable all-around choice if the hunter wants one load for mixed species.

Can this ammunition be used in older 30-06 rifles, including military surplus actions?

The Federal Fusion 30-06 180 gr SBT is loaded to standard SAAMI pressure specifications for 30-06 Springfield and is appropriate for use in any rifle chambered for that cartridge in good mechanical condition. Older Springfield M1903, M1 Garand, and similar military actions chambered in 30-06 are generally safe with standard commercial ammunition at standard pressure. However, the M1 Garand has a gas system designed around a specific pressure curve, and some commercial loads — particularly those with faster-burning powder profiles — can cause accelerated op-rod wear. Federal’s standard Fusion line is not specifically listed as M1 Garand-safe; hunters using a Garand should consult Federal’s published Garand-compatible load list or use a load specifically cleared for that platform.

How does the Fusion SBT compare to the Winchester Deer Season XP 180 gr in actual terminal performance on deer?

The Winchester Deer Season XP uses a large-diameter polymer tip designed to initiate rapid, wide expansion at the cost of deeper penetration, while the Federal Fusion SBT is engineered for controlled expansion with higher weight retention due to its bonded construction. In practical terms, the Deer Season XP tends to produce a larger initial wound channel but may shed more core material, particularly on angled shots or when bone is encountered. The Fusion SBT is more likely to remain intact through heavy shoulder structure, which can be an advantage on larger-bodied deer or on less-than-perfect shot angles. For broadside shots at moderate ranges on average-sized whitetails, the difference in outcome is likely minimal. The Fusion’s bonded design provides a wider margin of performance across variable shot conditions.

Is the Federal Fusion 30-06 180 gr SBT legal for hunting in California or other lead-restricted areas?

No. The Federal Fusion 180 gr SBT uses a lead core and is not compliant with California’s lead-free ammunition regulations, which apply to all hunting statewide as of July 2019. It is also not compliant in other jurisdictions that restrict lead-core projectiles in designated wildlife management areas. Hunters in California or other lead-restricted zones should look at Federal’s Trophy Copper line, Barnes TSX or LRX, or Hornady GMX loads in 30-06 as lead-free alternatives. Always verify current regulations with the relevant state wildlife agency before purchasing ammunition for a specific hunting season or zone.
